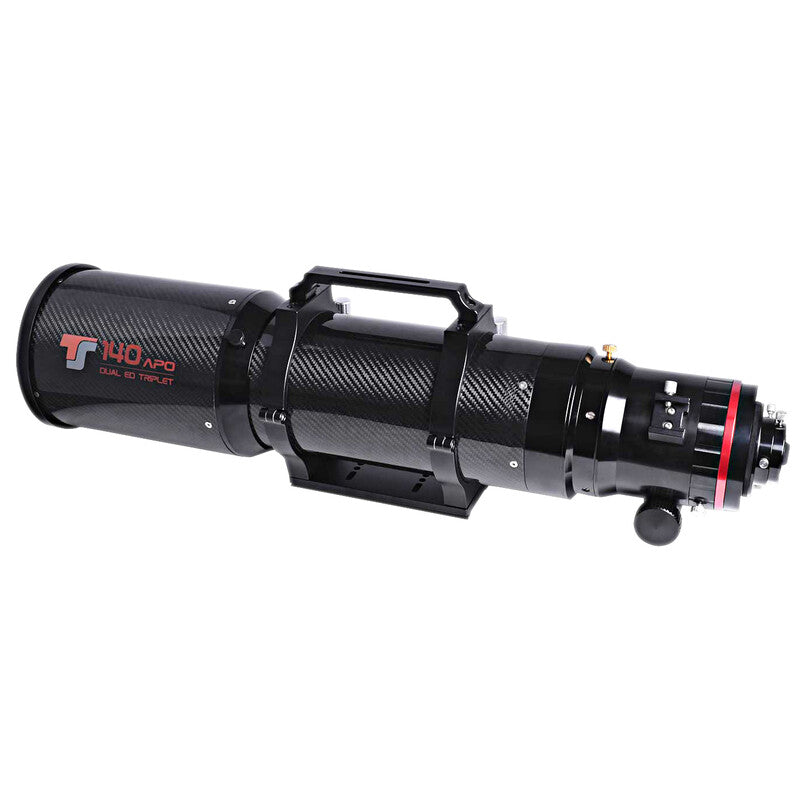

TS-Optics Carbon Photoline 140 mm f/6.5 Super Triplet Apo with 2 ED elements
No reviews
£4,073.25
| /
At a glance
Aperture 140 mm
Focal length 910 mm
Fast focal ratio f/6.5
Air-spaced triplet objective - 2 ED elements provide an image free from chromatic aberration
Solid 4" rack and pinion focuser with dual speed - ideal for astrophotography
Intermediate threads for screwed adaptations, e.g. M68x1 female thread
Retractable dew shield
CNC tube rings, carrying handle and dovetail bar are included in the scope of delivery
Carbon tube for easier transport and high stability
Delivery in transport case
Description
The AP 140/910 optics are suitable for both mobile astrophotography and observatories. The large 140 mm aperture, combined with the colour-pure images produced by the triplet design, opens up a wide range of possible uses.
The 3-element lens with two ultra-low dispersion ED elements is fully adjustable. The colour correction meets the requirements of demanding astrophotographers: even bright stars show no colour fringing. Visual observation of bright planets is a huge pleasure with this obstruction-free aperture and relatively high resolution! Highly addictive!
The apochromat is equipped with a large 4" R&P focuser. The focuser allows a variety of connection options for a screw connection to an astro camera. Even full-frame cameras are fully illuminated.
The mechanics (focuser) are optimally adjusted before shipping. The collimation is checked on the optical bench (autocollimation) and improved if necessary. A series of images is taken and included with each telescope. Star image extra- and intrafocal, star image in focus and a Ronchi image.
